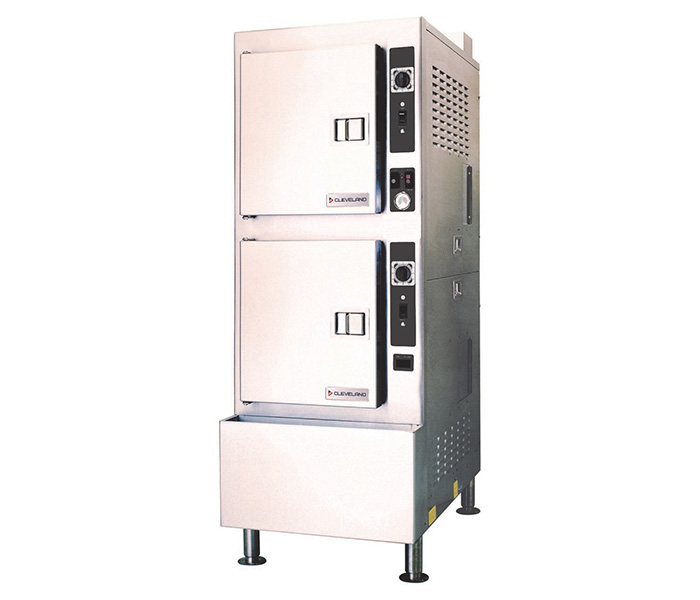

24CGP10 SteamCraft power 10 convection steamer

15 PSI gas boiler, TWO COMPARTMENT FLOOR MODEL DESIGN GAS STEAM BOILER 240M BTU, 24" WIDE MODULAR DESIGN

CLEVELAND, SteamCraft‚ Power 10, two compartments, Floor Model Steamer, Model 24-CGP-10. Single, large capacity Gas-fired Pressure Steam Generator, 240M BTU input. Exclusive Automatic Water Level Float design. Steam Generator with Automatic Water Fill on start up, Automatic Generator Blowdown, Electronic Spark Ignition and Generator Standby for instant steam. Choice of Compartment Controls, Manual By Pass Operation Mode. Exclusive Cold Water Condenser design.

Features
Accessories
Videos
Downloads

Left Hand Door Hinging
Compartment Doors hinged left, controls on the right.

Capacity
Each compartment has cooking capacity for 5 each 12" x 20" x 2 1/2" Steam Table Pans

Instant Steam Standby Mode
Holds generator at a steaming temperature, allows unit to start cooking quickly

Door
Durable 14 Gauge, 304 Stainless Steel construction for compartment door, cooking cavity and steam generator

Controls
Two 60 Minute Electro-Mechanical Timers and Switches for manual operation: Audible signal for cooking time completion. (MCS)

Steam Distribution
Exclusive Steam Cooking Distribution System: Exclusive Brass Steam Jets produce a high velocity convection steam without fans. Coved Corner design in cooking compartment distributes heat evenly, and is easy to clean. Creased top & bottom enhance drainage. Cold Water Condenser for each compartment maintains a dry steam. Fully Insulated cooking compartment for thermal efficiency. Removable Stainless Steel Slide Racks.

Generator Drain
Automatic Generator Drain: Contains a "Water Jet" Spray Rinse Drain Cleaning Cycle to keep drain clear.

Automatic Probe
Exclusive Automatic Probe for Water Level Control: Separate from the generator for easy access, contains a high velocity rinse cycle to eliminate mineral build up.

Door
Exclusive "Cool to the Touch" Two-Piece Compartment Door Design: Free floating inner door with reversible gasket provides an air tight seal. Stainless Steel Slam/Latch Door Latch mechanism for reliability.

Condensate Drip Trough
Provide under lower compartment door to collect condensate.

Stainless Steel Legs
NSF Certified 6" Stainless Steel Legs with adjustable flanged feet for a one inch level adjustment.

PowerPak Generator
High Efficiency Forced Air (Power Burner) Gas Fired Boiler has 240,000 Btu's Input, produces 180 Ibs of steam per hour. 10-12 PSI operating generator pressure. Steam generator is equipped with a High-Limit Pressure Safety Switch, 15 psi Safety Valve and a Secondary Low Water Shut Off Safety standard. Fully insulated rear mounted steam generator. Gas Pressure Regulator and Control Valve included standard.

Descaling Connection
Boiler Descaling Port Connection: Inlet and Outlet descaling port connections for use with the Descaling Pump

Main Power On/Off Switch
Controls the electric power and automatically fills the generator with water. A separate Steam Switch ignites the burners via a fully automatic Electronic (pilotless) Spark Ignition.

	8" Stainless Steel Legs (LF8)
	Boiler Descaling Pump Kit (107142)
	Cafeteria Pans In depths of 1", 2 1/2" and 4"
	Dissolve Descale Solution 6 one gallon container w/quart markings (106174)
	Door Hinging Right Hand Door Hinging, Controls on Left (DHR)
	Electronic Timer With Compensating Load Feature (ETC)
	ON/OFF Steam Switch For compartment controls (MC)
	Propane Gas Option (PG)
	Safety Switch Compartment Door Steam Shut Off Switch (SCS)
	Power Take Off Kit (GPTO-1O)
