| W x D x H |
21" x 32" x 29"
|
| Weight |
275 lb
|
| Power Output | 70000 N/A |
| Power Input Type | Gas - Natural |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Certifications |
![]() ![]() ![]() |
21CGA5: SteamCraft Ultra 5 with gas generator
COUNTER TYPE DESIGN, PRESSURELESS CONVECTION STEAMER, GAS STEAM GENERATOR, 70,000 BTU

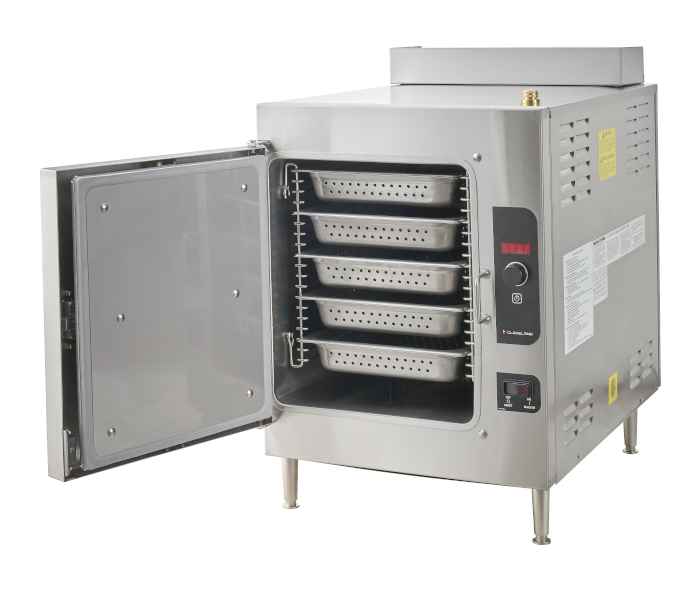

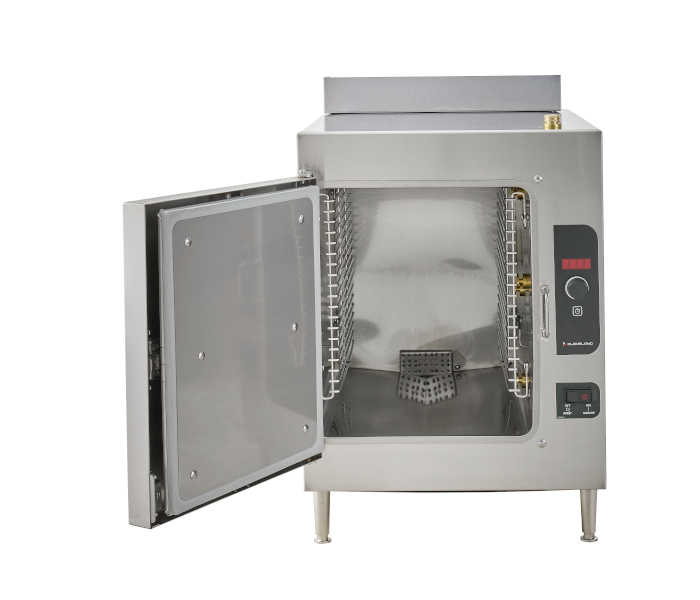

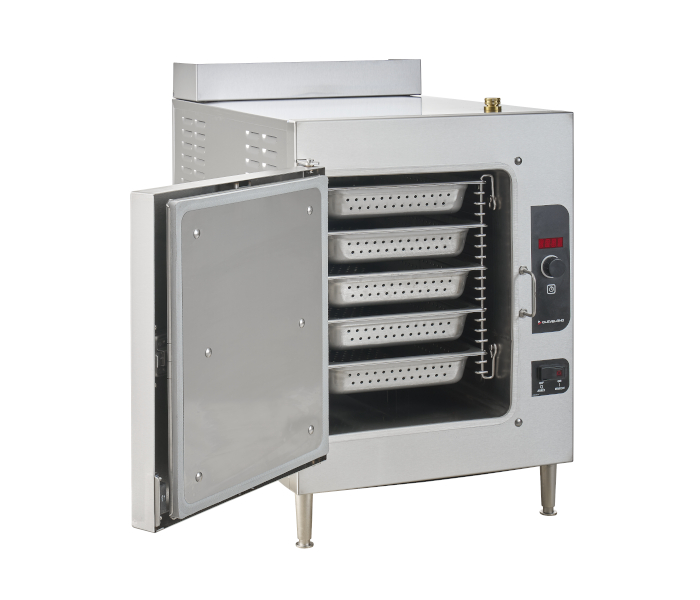

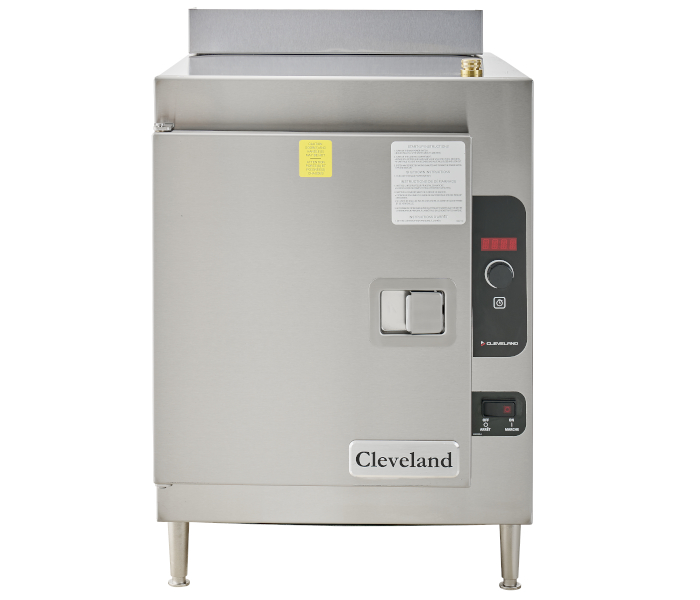

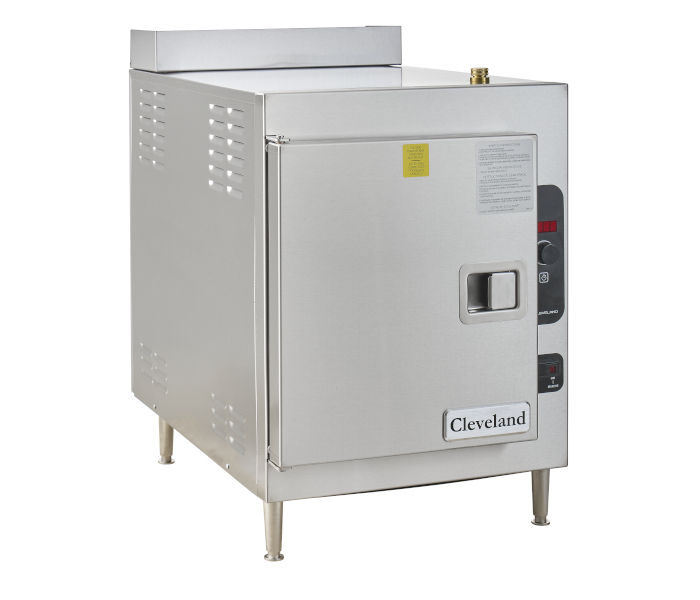

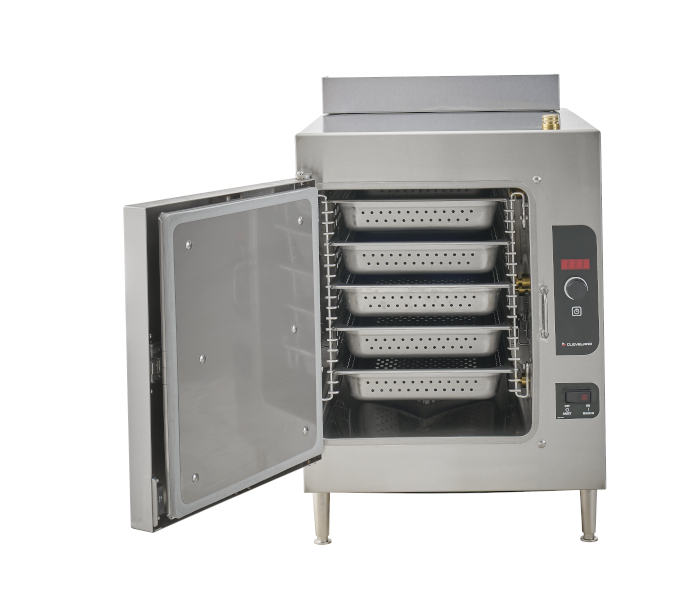

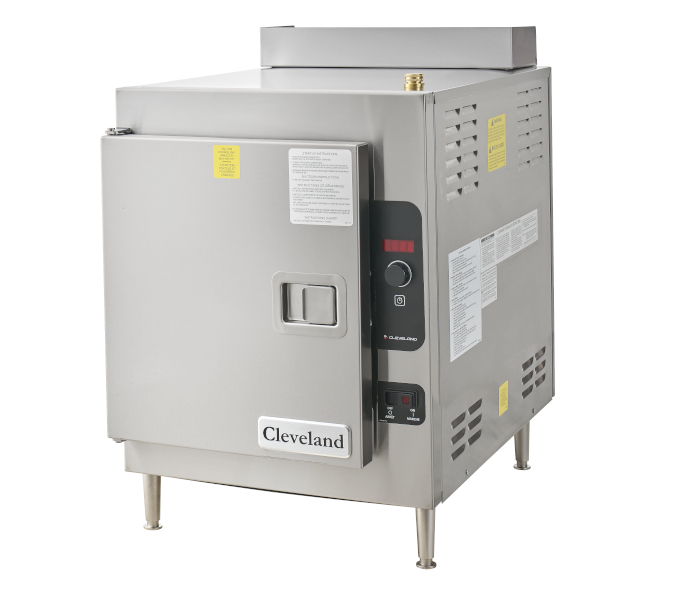

CLEVELAND, SteamCraft‚ Ultra 5, one compartment, Counter-Type Steamer, Model 21-CGA-5, 70 M BTU, heavy duty all Stainless Steel construction; rear mounted, insulated Steam Generator with Remote Probe Type Water Level Controls and Automatic Steam Generator Blowdown with “Water Jet” Drain Cleaning feature.
|
Left Hand Door Hinging
Compartment Doors hinged left, controls on the right. |
|
Steam Distribution
Exclusive Steam Cooking Distribution System: Exclusive Brass Steam Jets produce a high velocity convection steam without fans. Coved Corner design in cooking compartment distributes heat evenly, and is easy to clean. Creased top & bottom enhance drainage. Cold Water Condenser for each compartment maintains a dry steam. Fully Insulated cooking compartment for thermal efficiency. Removable Stainless Steel Slide Racks. |
|
Generator Drain
Automatic Generator Drain: Contains a "Water Jet" Spray Rinse Drain Cleaning Cycle to keep drain clear. |
|
Controls
One 60 Minute Electro-Mechanical Timer and Switch for manual operation. Audible signal for cooking time completion. Separate Switch for Power "ON/OFF". |
|
Generator Cleaning Port
Easy access Generator Cleaning Port located on the outside, top of the unit. Not necessary to remove hot panels or rack guides to access. |
|
Generator Cleaning Light
Indicator Light located on the front of the unit warns operator it is time to delime generator. |
|
Stand By Mode
Instant Steam Stand By Mode holds generator at a steaming temperature. Allows unit to start cooking instantly. |
|
Construction
Durable 14 Gauge, Stainless Steel Construction for compartment door, cavity and steam generator. |
|
Remote Probe
Exclusive Automatic Remote Probe Type Water Level Control: Separate from the generator for easy access. |
|
Door Design
Exclusive "Cool to the Touch" Two-Piece Compartment Door Design: Free floating inner door with reversible gasket provides an air tight seal. Stainless Steel Slam/Latch Door Latch mechanism for reliability. |
|
Cooking Capacity
For up to five 12" x 20" x 2 1/2" deep Cafeteria Pans. |
|
Steam Generator
Innovative PowerPak Gas Steam Generator: Naturally Fired 70 MBTU Generator is 72% Efficient. Strong 14 Gauge Stainless Steel Construction. Fully Automatic Electronic Spark Ignition (pilotless). |
|
Electrical
Standard with Cord & Plug for 115 volt controls. |
SteamCraft Ultra 5, Model 21CGA5 with Gas Generator
4" LegsStainless Steel (LF4) |
|
Additional Pan RacksFor Equipment Stands (PR) |
|
Cafeteria PansIn depths of 1", 2 1/2" and 4" |
|
Dissolve Descale Solution6 one gallon container w/quart markings (106174) |
|
Electronic TimerWith Compensating Load Feature (ETC) |
|
Equipment Stand(UNISTAND34) |
|
ON/OFF Steam SwitchFor compartment controls (MC) |
|
Propane Gas Option(PG) |
|
Shut Off SwitchFor Compartment Door Steam (SCS) |
|
Water FiltersReplacement cartridges available |
