MKGL-T: Gas steam mixer kettle, tilting

2/3 STEAM JACKETED MIXER KETTLE (3.5 Bar boiling Pan), 2/3 STEAM JACKETED, 50 PSI STEAM, (40, 60 & 80, GALLONS, 150, 225 & 300 LITERS, per kettle)

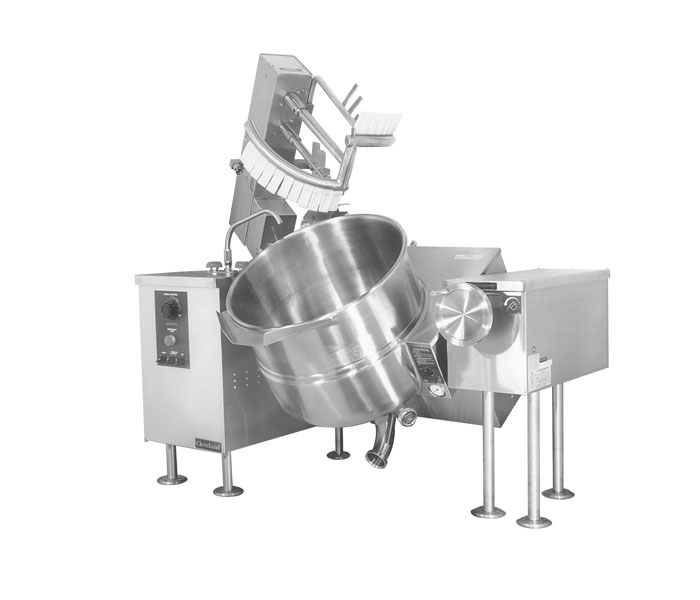

Cleveland Gas-Fired Tilting Vertical Mixer Kettle. MKGL-___T ___ gallons, 2/3 steam jacketed, 65% efficient forced air double pass heating system, 50 psi steam jacket rating, automatic ignition, solid-state splash-proof controls, 3˝ Diameter Butterfly Valve.

Features
Accessories
Videos
Downloads

Steam Jacket
Permanently filled with treated, distilled water. Venting and/or refilling not requiredTwelve gallon model with a 53,000 BTU firing rate, and 34,450 BTU directly applied to the product.

Mixing
3 HorsePower Hydraulic powered Agitator, Scraper and Bridge Lift.
Infinitely Variable Scraper Speed Control from 0 to 40 rpm.
Infinitely Variable Ratio between Scraper and Agitator:
Agitator rotates from 0 to 8 times the speed of the Scraper.
Removable (without tools) Nylon Blades scrape the entire Jacketed Surface.
Safety Device prevents high speed Starts.
Mixing stops when Bridge is lifted.
Agitator and Scraper are Bayonet Mounted for easy removal.

Tilt Mechanism
Roller bearings and case hardened self-locking worm and segment gear.

Heating System
High Efficiency (65%) Forced Air Double Pass Heating System. 140M BTU on 40 gallons, 190M BTU on 60 and
80 gallons.

Automatic Ignition System
50 psi Steam Jacket Rating.

Insulated Heat Exchanger

Easy Cleaning
Type 304 Stainless Steel with #4 finish on kettle and supports.

Mixer Bridge
Enclosed, Balanced 10 gauge Stainless Steel - hydraulically operated.

Pressure/Vacuum Gauge
Recessed and front-mounted.

Solid-State Controls
Precise temperature controls with less than 1º C temperature differences. LED indicator for Heat Cycle and Low Water Indicator, Power On/Off Switch.

Quick Opening Butterfly Valve
3" diameter.

Gas & Electrical
Standard for natural gas operation, standard voltage is 120/208-240, 3 phase.

Flanged Feet
Level adjustable.

Scraper Shaft
With gallon markings.

	Covers (MTP)
	Food Strainer (FS)
	Kettle Accessory Kit (KAK) includes: Clean-up Brush (CB), 36" Kettle Paddle (KP), 36" Kettle Whip (KW), 36" Kettle Brush (KB), Draw-off Brush (DB), 24 oz. Ladle (KL)
	Pan Carrier (PCK)
	Type 316 Stainless Steel Kettle Interior for high acid food products (316-12G)
	Product Time/Temperature Controls and Indicators (DTCI)
	Hot & Cold Water Faucet. (DPK)
	Alternate Draw-Off Valve 3" Air Operated Flush Piston Valve. (FPVA3) (for use with a food pump, replaces 3" butterfly valve) (requires air compressor)
	Water Meters (GMC1 or LMC1)
	Tri-Basket Strainer Support Systems. (TBS
