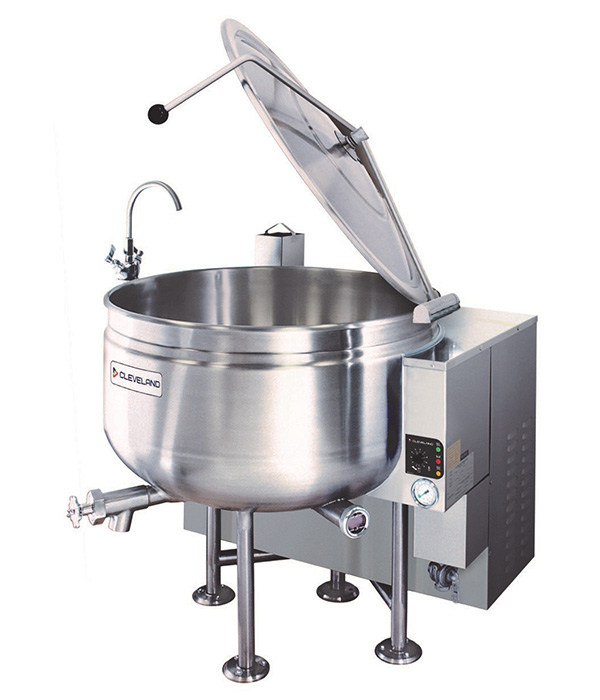

KGL-SH: Gas steam kettle short series, stationary

2/3 STEAM JACKETED, "SHORT SERIES", 40 & 60 GALLONS (150, 225 LITERS)

CLEVELAND, Gas-fired Sort Series, 37.5' Rim Height Kettle, Full Steam Jacketed, Power Burner Heating System, Insulated Heat Exchanger, 50 psi Steam Jacket Rating. Infinite Variable Temperature Control, L.E.D. indicators for Heat Cycle and Low Water Warning, spring-assisted Cover, 2" Tangent Draw-off Valve with Drain Strainer, Automatic Ignition System.

Features
Accessories
Videos
Downloads

Construction
Type 304 Stainless Steel construction, with #4 finish on kettle and supports

Jacket Rating
50 psi steam jacket rating for higher cooking temperatures

Gas
Standard for natural gas operation

Heat-Up and Recovery
Fast Heat-up and Recovery Time, 140M BTU's on 40 gallon models, 190M BTU's on 60 gallon and larger

Heat Exchanger
Insulated

Ignition System
Automatic

Steam Jacket
Permanently filled with treated, distilled water. Venting and/or refilling not requiredTwelve gallon model with a 53,000 BTU firing rate, and 34,450 BTU directly applied to the product.

Controls
Solid State Controls, for Temperature and Low Water Safety, in a plug-in Control Module

Control Panel
Precise, consistent temperature control: less than 1°C variance (ideal for simmering),L.E.D. Indicators for Heat Cycle and Low Water Warning,Power "ON/OFF" Switch

Pressure Gauge
Front mounted combination Pressure/Vacuum Gauge

Draw-Off Valve
2" diameter Tangent Draw-Off Valve with Drain Strainer

Cover
Spring-assisted, hinged, rotatable, domed StainlessSteel Cover

Electrical
Standard voltage is 115 volts, 60 Hz, single-phase, supplied with cord and plug

Faucet Mounting Bracket
(FBK)

High Effieiency Power Burner
High efficiency Power Burner Heating System(62% to 65% burner efficiency)

	3" Draw-Off Valve 3" diameter Tangent Draw-Off Valve with Drain Strainer (TD3)
	316 Stainless Steel Liner (316G)
	Automatic Water Meter (GMF or LMF)
	Cooking Baskets and Tri-Basket Supports (BS and TBS)
	Drain Strainers (DS-)
	Faucet Hot and cold water faucet (DPK), or Cold Water (SPK). Requires bracket (FBKT)
	Gas Propane Gas Operation (PG)
	Heat Deflector Shield (HS001)
	Kettle Accessory Kit (KAK) Clean-up Brush (CB), 36" Kettle Paddle (KP)36" Kettle Whip (KW), 36" Kettle Brush (KB)Draw-off Brush (DB), 24 oz. Ladle (KL)
	Measuring Strip (MS)
