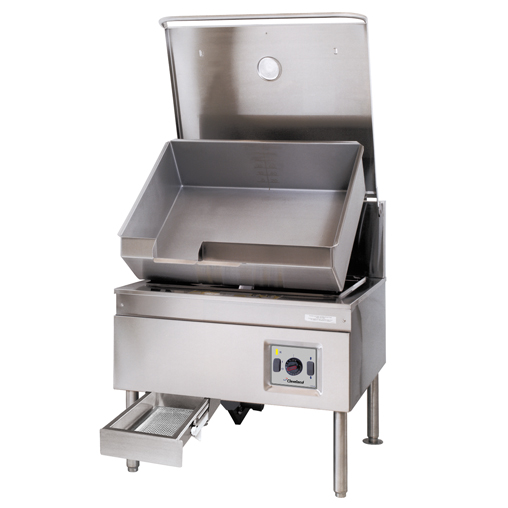

SEL30TR, SEL40TR: Braising pan tilting skillet
DuraPan Series Electric, OPEN BASE DESIGN, 30 and 40 GALLONS (117, 156 Liters) "SPLASH PROOF" Construction
CLEVELAND, Tilting Braising Pan/Skillet, Electric heating System (14, 18 KW's) complete with Thermostatic and Safety Controls; Gallon Markings; Stainless Steel Clad; 5/8" "Bead Blasted" Cooking Surface prevents food sticking to surface; Power Tilt or Manual Hydralic Hand Tilt (Please Specifiy); Spring Assist Cover with adjustable Vent. All Stainless Steel Construction. No Clearances Required. Optional 2" (50 mm) Tangent Draw-Off (comes with front hinge pan support with Draw-Off Option-see spec sheet)
|
Base
Leg or Modular |
|
Capacity
Full 30/40 Gallon Capacity Rating to Bottom of Pouring Lip |
|
Tilting
Power Tilt (Hydraulic Hand Tilt Optional) |
|
Cooking Surface
Stainless Steel Clad 5/8" Cooking Surface Guaranteed against warpage |
|
Pan
Stainless Steel Coved Cornered Pans with both Gallon and Liter Markings |
|
Space-Saving Design
No Clearance Required at rear or sides (optional Faucet and Console requires 4 1/2" on one side) |
|
Construction
All Stainless Steel Construction for durability and easy cleaning |
|
Temperature Controls
Adjustable, Electronic Thermostat controls temperature from 100°F to 425°F |
|
Heating System
High Efficiency Heating System with even heat distribution - 14 kW's for 30 gallon models, 18 kW's for 40 gallon models. |
|
Fast Heat-Up
Fast Heat-Up and Recovery Time - Preheats in 15 minutes, full capacity from cold to boiling in 60 minutes |
|
Cover
Spring Assist Cover with Adjustable Vent and Full Width Handle |
|
Controls
On/Off Switch, Thermostat Knob and Pilots, recessed to avoid breakage |
|
Adjustable Feet
Four Stainless Steel, Level adjustable feet, rear flanged for bolting |
|
Access
Serviceable from the front of the unit |
|
Indicators
Two Pilot Lights; Green = Power on, Amber = Temperature Cycling |
|
Splash Proof
Splash Proof Controls and Water Tight Electrical Connections |
|
High Limit Safety
High Limit Safety Device set at 450°F (232°C) |
|
Pouring Lip
Anti-Splash |
FaucetDouble or Single Pantry Faucet (SPS14, DPS14), includes Faucet Mounting Bracket. |
|
Food StrainersFor pouring spout (FS) |
|
Poaching Pans(PP). |
|
Power TiltWith Hand Tilt Override (PT1) |
|
Quick Lowering FeatureHydraulic Hand Tilt with Quick Lowering Feature (HTS) |
|
Skillet FillerDouble or Single Pantry Skillet Filler with 60" hose (SKF-S or DKF-S) |
|
Sliding Drain DrawerSliding Drain Drawer with Splash Screen (SLD) (for SEL models only) |
|
Spray HeadHot & Cold Water Pre-Rinse Spray Head with Hose (PRS-S) |
|
Vegetable Steamers(VS) |
|
Wall Mounting(WMS) |
