Garland Canada - C48-1-1 Garland Cuisine 48" Griddle Top Ranges with Thermostat Control

C48-1-1 Garland Cuisine 48" Griddle Top Ranges with Thermostat Control

48" Heavy-Duty Range with Full Griddle Top

Available with a standard oven, a convection oven, an open storage base, or as a modular top.

May be connected individually or in a battery.

Ovens - One-piece oven door with a heavy-duty, “keep-cool” door handle. Fully insulated porcelain or optional stainless steel oven interior. Standard oven comes with a thermostat and has a temperature range from 150° (low) to 500°F (66°-260°C). Comes with 1 chrome-plated oven rack in standard ovens and 3 oven racks for convection ovens.

Griddle Tops - Griddle control with embedded thermostat sensor bulb, low heat up to 450°F (232°C). 1” (25mm) thick steel plate griddle with 3" (76mm) wide grease trough. Burners rated 30,000 BTU/hr each. One burner per 12” (305mm) section.

C48-1-1C 48" Thermostat Control Griddle Top with Convection Oven

Garland Cuisine HD Griddle Top Range C48-1-1C

May be connected individually or in a battery.

Convection Oven - Stainless steel exterior and front rail for easy plating. Fully insulated porcelain or optional stainless steel oven interior with a heavy-duty, “keep-cool” door handle. Convection oven comes with a thermostat with a temperature range from 150° (low) to 500°F (66°-260°C), rated at 37,000 BTU. Comes with 3 chrome-plated oven racks and 3 rack positions.

Griddle Top - Griddle control with embedded thermostat sensor bulb, low heat up to 450°F (232°C). 1” (25mm) thick steel plate griddle with 3" (76mm) wide grease trough. Burners rated 30,000 BTU/hr each. One burner per 12” (305mm) section.

W x D x H	48" x 407/8" x 431/4" 121.9 cm x 103.8 cm x 109.9 cm
Power Output	157000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Secondary Power Input	115-120 V x 60 Hz x 1 PH
Certifications

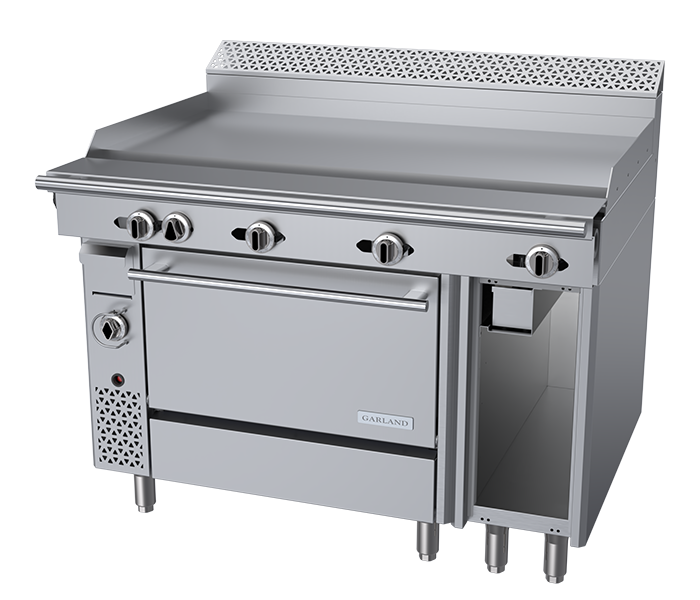

C48-1-1R 48" Thermostat Control Griddle Top with Standard Oven

Garland Cuisine HD Griddle Top Range C48-1-1R

May be connected individually or in a battery.

Standard Oven - Stainless steel exterior and front rail for easy plating. Fully insulated porcelain or optional stainless steel oven interior with a heavy-duty, “keep-cool” door handle. Standard oven comes with a thermostat and has a temperature range from 150° (low) to 500°F (66° - 260°C), rated at 40,000 BTU. Comes with 1 chrome-plated oven rack and 4 rack positions.

Griddle Top - Griddle control with embedded thermostat sensor bulb, low heat up to 450°F (232°C). 1” (25mm) thick steel plate griddle with 3" (76mm) wide grease trough. Burners rated 30,000 BTU/hr each. One burner per 12” (305mm) section.

W x D x H	48" x 393/8" x 431/4" 121.9 cm x 100 cm x 109.9 cm
Power Output	160000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

C48-1-1S 48" Thermostat Control Griddle Top with Storage Base

Garland Cuisine HD Griddle Top Range C48-1-1S

May be connected individually or in a battery.

Stainless Steel Storage Base - Optional stainless steel doors and interior shelves.

Griddle Top - Griddle control with embedded thermostat sensor bulb, low heat up to 450°F (232°C). 1” (25mm) thick steel plate griddle with 3" (76mm) wide grease trough. Burners rated 30,000 BTU/hr each. One burner per 12” (305mm) section.

W x D x H	48" x 393/8" x 431/4" 121.9 cm x 100 cm x 109.9 cm
Power Output	120000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

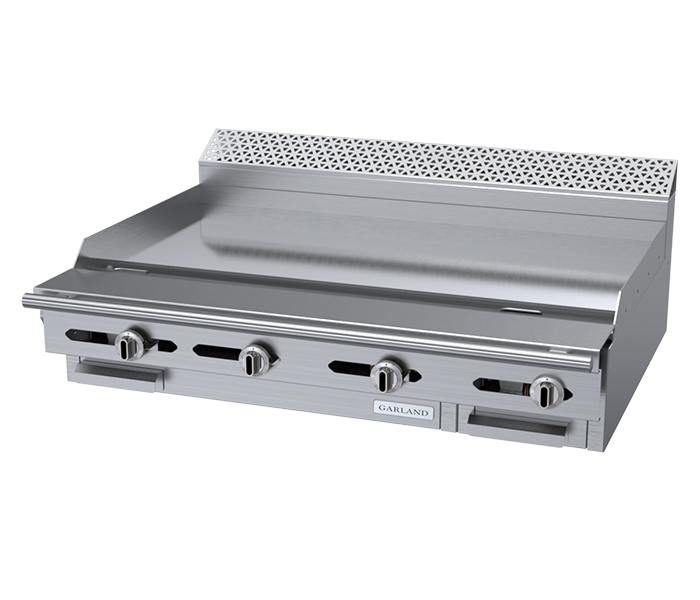

C48-1-1M 48" Thermostat Control Modular Griddle Top

Garland Cuisine HD Griddle Top Range C48-1-1M

May be connected individually or in a battery.

Modular Griddle Top - Griddle control with embedded thermostat sensor bulb, low heat up to 450°F (232°C). 1” (25mm) thick steel plate griddle with 3" (76mm) wide grease trough. Burners rated 30,000 BTU/hr each. One burner per 12” (305mm) section.

Can be mounted on Polar Cuisine refrigerated base.
