Garland Canada - GIRCM G-Series Range-Match Cheesemelter

GIRCM G-Series Range-Match Cheesemelter

Medium-Duty Range-Mount or Counter-Mount Cheesemelters

Two individually controlled, high-efficiency 15,000 BTU (4.39 kW) infra‑red burners provide fast preheat and uniform melting with a unique atmospheric burner design directing the heat downwards to the heavy chrome-plated rack.

Range-Mount Cheesemelters – Stainless steel front, top, sides, backsplash, and protective bottom heat shield.

Counter-Mount Cheesemelters (suffix C) – Stainless steel front, top, and sides, with 4" (102mm) legs.

Available for G36, G48 and G60 series ranges.

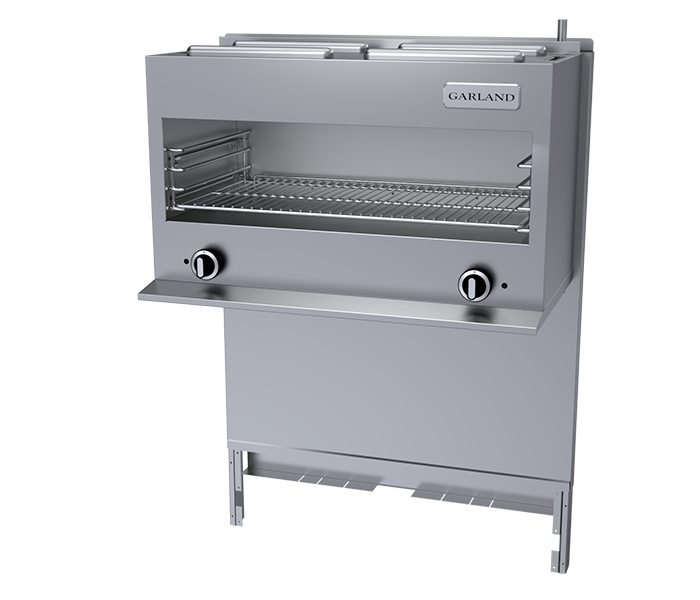

GIRCM36 G-Series Range-Match 36" Cheesemelter

Two individually controlled, high-efficiency 15,000 BTU (4.39 kW) atmospheric infra‑red burners provide fast preheat and uniform melting with a unique burner design directing the heat downwards.

GIRCM36 Range-Mount Cheesemelter – Cheesemelter with mounting backsplash, stainless steel front, top, sides, backsplash, and protective bottom heat shield, overall width 35-1/2" (900mm) mounts on model G36 series ranges.

W x D x H	351/2" x 243/4" x 501/2" 90.2 cm x 62.9 cm x 128.3 cm
Weight	200 lb 90.7 kg
Power Output	30000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

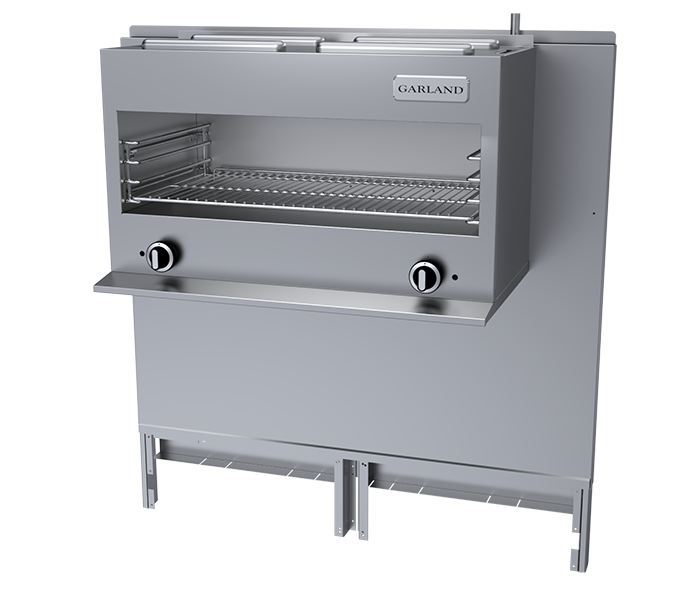

GIRCM48 G-Series Range-Match 36" Cheesemelter

Two individually controlled, high-efficiency 15,000 BTU (4.39 kW) atmospheric infra‑red burners provide fast preheat and uniform melting with a unique burner design directing the heat downwards.

GIRCM48 Range-Mount Cheesemelter – 36" Cheesemelter centered on mounting backsplash, stainless steel front, top, sides, backsplash, and protective bottom heat shield, overall width 47-1/4" (1200mm) mounts on model G48 series ranges.

W x D x H	471/4" x 243/4" x 501/2" 120 cm x 62.9 cm x 128.3 cm
Weight	230 lb 104.3 kg
Power Output	30000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

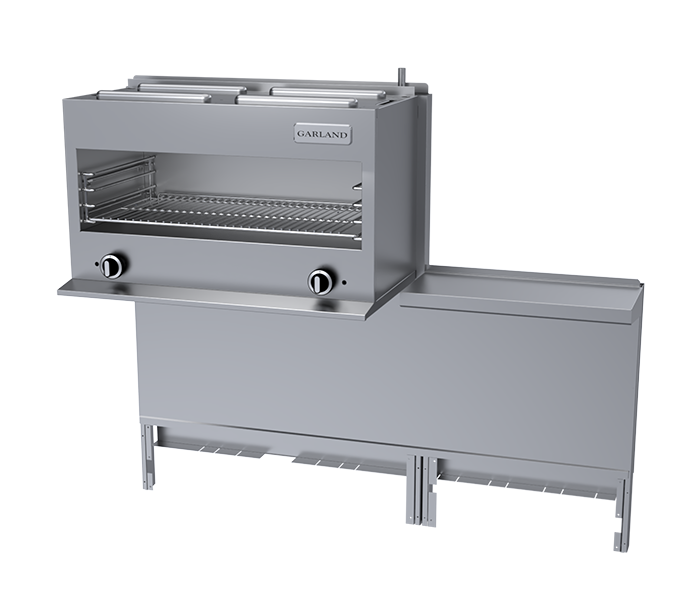

GIRCM60 G-Series Range-Match 36" Cheesemelter

Two individually controlled, high-efficiency 15,000 BTU (4.39 kW) atmospheric infra‑red burners provide fast preheat and uniform melting with a unique burner design directing the heat downwards.

GIRCM60 Range-Mount Cheesemelters – 36” Cheesemelter on mounting backsplash, stainless steel front, top, sides, backsplash, and protective bottom heat shield with 24” (610mm) supporting shelf, overall width 59” (1500mm) mounts on model G60 series ranges.

W x D x H	591/8" x 243/4" x 57" 150.2 cm x 62.9 cm x 144.8 cm
Weight	260 lb 117.9 kg
Power Output	30000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

GIRCM36C G-Series Range-Match 36" Counter Cheesemelter

Two individually controlled, high-efficiency 15,000 BTU (4.39 kW) atmospheric infra‑red burners provide fast preheat and uniform melting with a unique burner design directing the heat downwards.

GIRCM36C Counter-Mount Cheesemelter – Stainless steel front, top, and sides, 34” (864 mm) counter model with 4” (102mm) legs or can be wall-mounted with optional wall mount kit.

W x D x H	34" x 243/4" x 253/8" 86.4 cm x 62.9 cm x 64.5 cm
Weight	170 lb 77.1 kg
Power Output	30000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications
