403P Series

Home
403P Series

403P Series

Self-contained compact work top refrigerators & freezers

Versatile High Performance Work Top Refrigerators and Freezer Units Designed for the Real World

Features
Technical Specifications
Accessories
Videos
Downloads

Exterior bottom
Exterior bottom shall be heavy-gauge galvanized metal.

Exterior ends shall be heavy gauge stainless steel.

Exterior top
Exterior top: One-piece, 22-gauge stainless steel with front edge turned down to form nosing and rear edge turned up to form a 2" (5.1 cm) thick by 4" (10.2 cm) high backsplash.

Base interior
Base interior: One-piece thermoformed ABS plastic material, with integral shelf supports. Base shall be fully insulated with high-density foamed-in-place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane.

Door
Door shall have a heavy-gauge stainless steel exterior, with a thermoformed ABS plastic interior liner, and shall be fully insulated with foamed-in-place polyurethane. Door handles shall be black, recessed ABS. Cabinet shall have 1 adjustable epoxy-coated wire shelf installed.

Equipment shall be mounted on 6" (15.2 cm) high metal legs with black enamel finish.

Electrical Connections
Electrical Connections: 115 volt, 60 Hertz, single phase. Unit shall have a 6' (1.8 m) long electrical cord and NEMA 5-15P plug. Cord and plug shall be located on the rear of the cabinet 16" (40.6cm) above floor, 5" from left side.

Freezer Refrigeration System
Freezers Only: Refrigeration system shall use R290 refrigerant. Compressor shall be 1/5 h.p., with condenser coil, temperature control and hot gas condensate evaporator mounted on rear of cabinet. Evaporator coil shall be mounted on the interior rear wall of the cabinet. Refrigerant flow shall be controlled by a capillary tube. Cabinet shall maintain -5°F to 0°F (-21°C to -18°C) interior cabinet temperature.

Electrical connections (CE models only)
Electrical connections shall be 230-240 volt, 50 Hertz, single phase. Unit shall have a 6’ (1.8m) long electrical cord and CEE 7/7 plug. Cord and plug shall be located on rear of cabinet, 16” (41 cm) above floor, 5” (13 cm) from left side.

403P

W x D x H	271/4" x 281/2" x 391/2" 69.2 cm x 72.4 cm x 100.3 cm
Weight	184 lb 83.5 kg
Power Output	0.2 Horsepower
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	4.5 Amps
Certifications

403P-CE

W x D x H	271/4" x 281/2" x 391/2" 69.2 cm x 72.4 cm x 100.3 cm
Weight	184 lb 83.5 kg
Primary Power Input	220-240 V x 50 Hz x 1 PH
Energy Use	2.1 Amps
Certifications

	Plastic laminate on front
	Stainless steel back
	Additional epoxy-coated wire shelf
	stainless steel single-tier overshelf
	3" (8cm)diameter casters
	5" (12.7cm) diameter casters
	Door lock (original order only' not field installable; per door
	Full-size composite-type cutting top
	220 volt, 50 Hertz electrical system *This option will alter the unit's electrical specifications.

Related Products

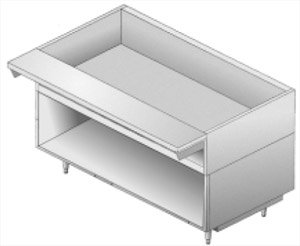

F17OS

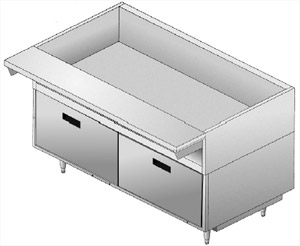

EcoMark F17DD
