US Range U60-6R24 U-Series 60" Wide Range with Raised Griddle/Broiler

Medium-Duty Restaurant Range with 6 Open Burners and 24" Raised Griddle/Broiler

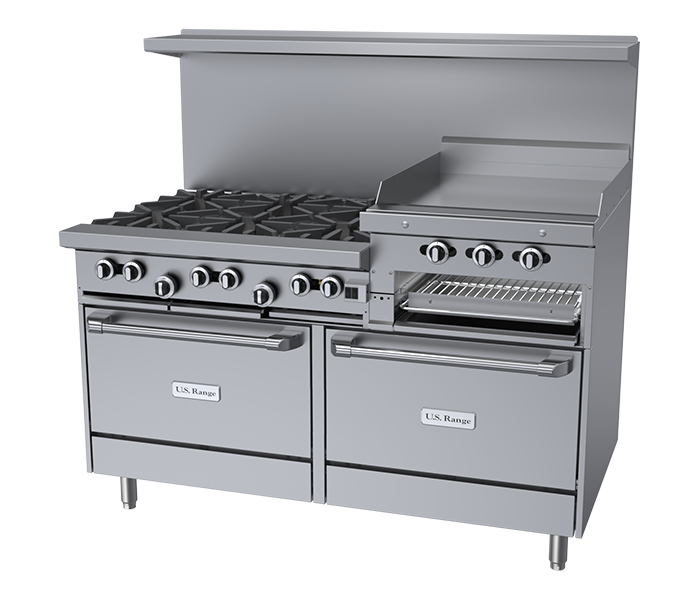

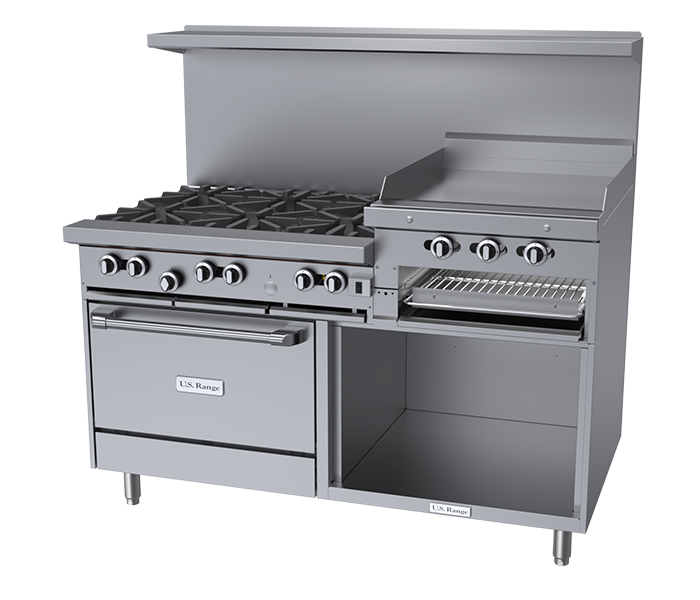

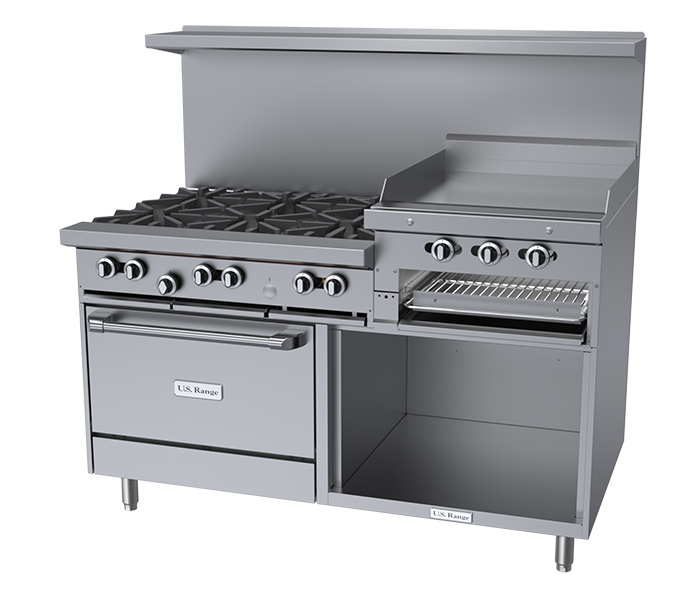

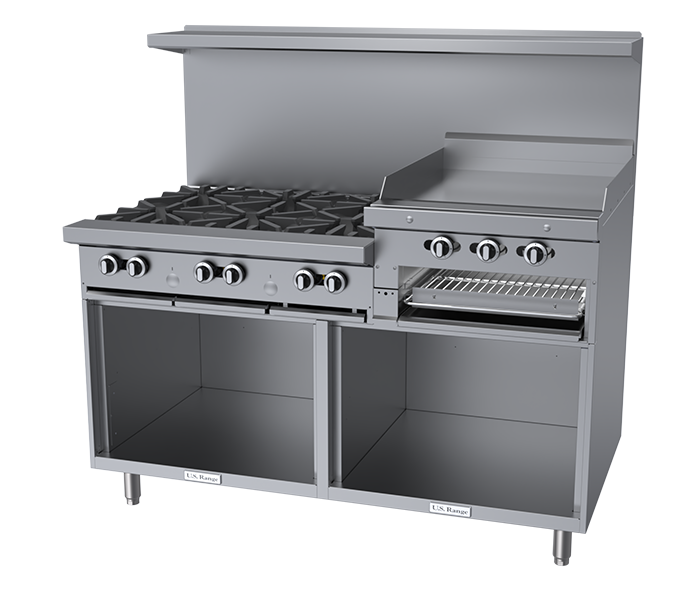

Available with 2 standard ovens, 2 convection ovens, 1 standard oven and 1 convection oven, a standard oven with storage, a convection oven with storage, or with a full open storage base.

Standard Ovens - A chef's oven is so large that it holds standard full-size sheet pans in either direction. The full porcelain interior, ribbed door, and hearth, along with a 38,000 BTU cast iron “H” burner, combine to generate and distribute heat faster and more evenly. Modulating oven thermostat control from 150° (low) to 500°F (66°-260°C). Best-in-class for temperature consistency and recovery time, making easy work of all your baking, roasting or finishing. One-piece oven door with a strong keep-cool handle. Comes with 1 nickel-plated oven rack and a 3-position removable oven rack guide.

Convection Ovens - The full porcelain interior, ribbed door and hearth, and a 1/3 HP, 120V, 60 Hz, single-phase fan motor combine to generate and distribute heat faster and more evenly. A modulating oven thermostat from 150° (low) to 500°F (66°-260°C). Best-in-class for temperature consistency and recovery time, making easy work of all your baking, roasting or finishing. One-piece oven door with a strong keep-cool handle. Comes with 3 nickel-plated oven racks and removable oven rack guides.

Storage Base – Stainless steel open storage base.

Open Burners - A two-piece 30,000 BTU “Q” style donut burner for concentrated power. The ergonomic split grate design allows pots to slide easily across the surface from burner to burner. Pilot lights are tucked outside of the spill zone so that you stay productive when spills happen. At 27” deep, the Garland Restaurant Range has the largest usable cooking surface in the industry. The 12" fully-sealed crumb trays are super lightweight, easier to handle and clean.

Raised Griddle/Broiler - A 24" raised section combines a griddle and a salamander in one unit for added flexibility in your kitchen. Three Cast-iron burners each rated at 11,000 BTU with one manual hi/lo valve per burner.


High Backguard with Shelf – Stainless steel backguard with removable shelf.



Hot Top Option – Choose a 12” wide, even-heat hot top plate in lieu of two open burners, manual hi-lo valve controlled with 18,000 BTU cast-iron H-style burner. Standard on the left side.
