US Range UIRCM Series Infra-Red Cheesemelter

Model Descriptions:

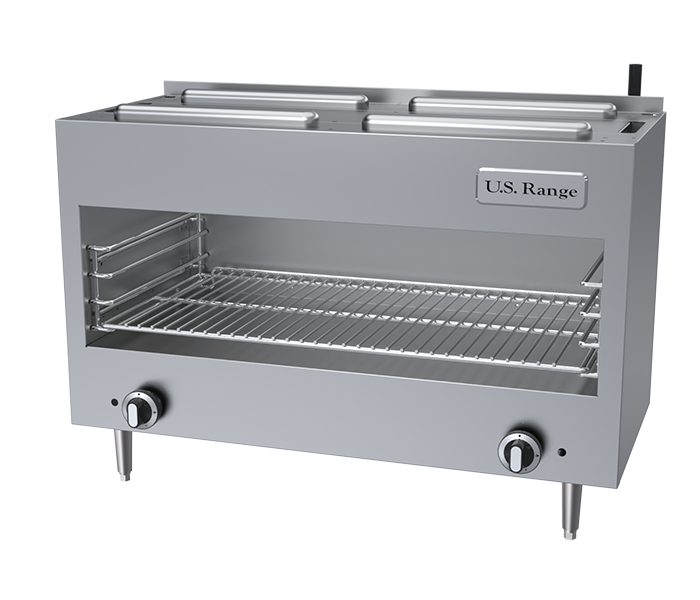

  • UIRCM36C = 34” (864 mm) counter model with 4” (102mm) legs or can be wall mounted with optional wall mount kit

  •
  • UIRCM36 = Cheesemelter with mounting backsplash overall width 35-1/2" (900mm) mounts on model U36 series ranges

  •

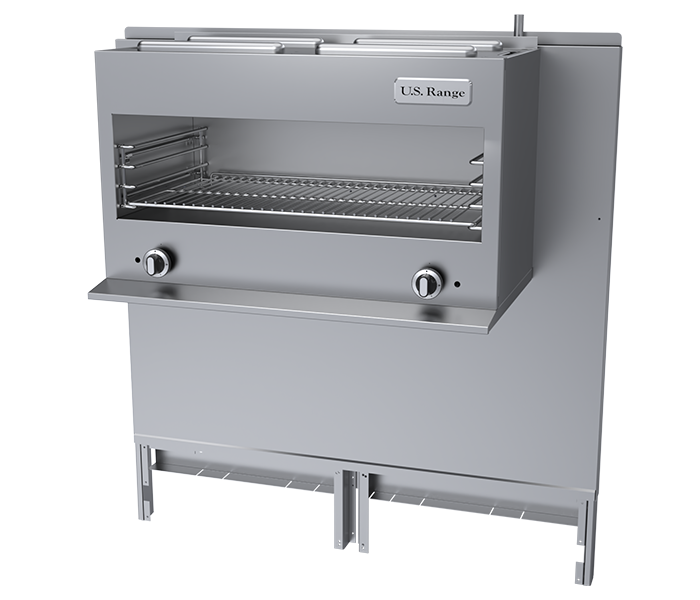

  • UIRCM48 = Cheesemelter center on mounting backsplash overall width 47-1/4" (1200mm) mounts on model U48 series ranges

  •

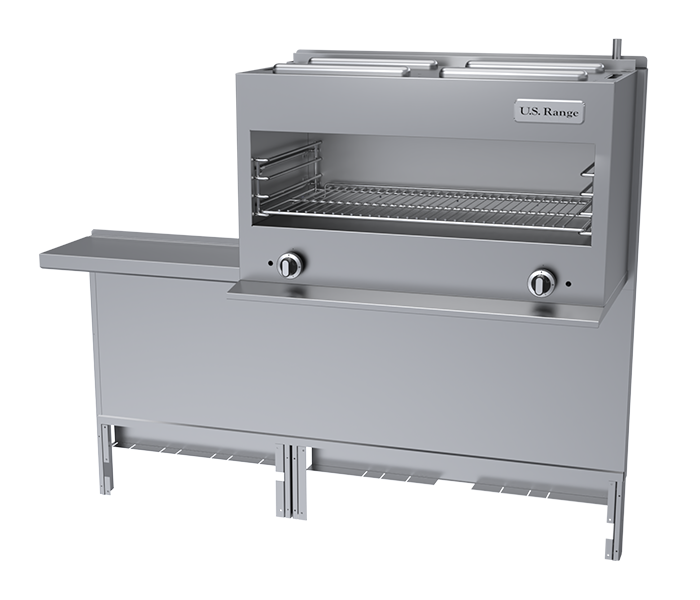

  • UIRCM60 = Cheesemelter on mounting backsplash with 24” (610mm) supporting shelf overall width 57 (1500mm) mounts on model U60 series ranges


All models have two atmospheric-type, 15,000 BTU (4.39 kW) gas infra‑red burners. Burners are individually controlled with high and low valve settings. Fast preheat and uniform production are provided by the high efficiency infra‑red burners. Unique atmospheric burner design directs heat downward to the heavy chrome plated rack. Sturdy chrome‑plated rack guides support the rack, which is adjustable to four positions. Rack and rack guides are easily removed for cleaning. Range mounted cheesemelters are securely supported by heavy duty steel brackets.
